Bottle caps are not only the first line of defense to protect the contents, but also a key link in the consumer experience, and an important carrier of brand image and product recognition. As a type of bottle cap series, flip caps are a very popular and user-friendly bottle cap design, characterized by the lid being connected to the base through one or more hinges, which can be easily "flipped open" to reveal the outlet, and then "snapped" to close.
Ⅰ、Lifting technology principle
The core technical principle of the flip cover lies in its hinge structure and locking/sealing mechanism:

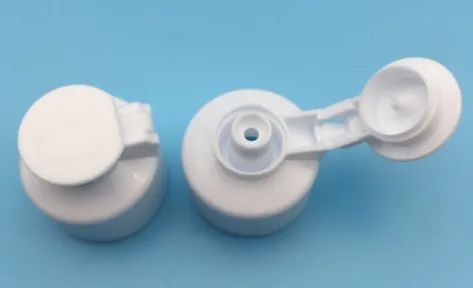

1. Hinge structure:
Function: Provide a rotation axis for the lid to open and close, and withstand the stress of repeated opening and closing.
Type:
● Living Hinge: The most common type. Using the flexibility of the plastic itself (usually implemented in PP material), a thin and narrow connecting strip is designed between the lid and the base. When opening and closing, the connecting strip undergoes elastic bending deformation instead of breaking. The advantages are simple structure, low cost, and one-piece molding.
● Technical key: material selection (high fluidity, high fatigue resistance PP), hinge design (thickness, width, curvature), mold accuracy (ensure uniform cooling to avoid internal stress concentration leading to breakage).
● Snap-on/clip-on hinge: The lid and base are separate components connected by an independent snap-on structure. This type of hinge usually has a longer life, but there are many parts, complex assembly, and relatively high cost.
● Pin hinge: Similar to door hinge, metal or plastic pin is used to connect the lid and base. It is less common in cosmetic packaging materials and is mostly used in situations that require extremely high durability or special design.
2. Locking/sealing mechanism
Function: Ensure that the lid is firmly closed, not easy to open accidentally, and achieves sealing.
Common methods:
● Snap/buckle locking (Snap Fit): A raised snap point is designed on the inside of the lid, and a corresponding groove or flange is designed on the outside of the bottle mouth or the base. When snapped together, the snap point "clicks" into the groove/over the flange, providing a clear locking feeling and retention force.
● Principle: Use the elastic deformation of plastic to achieve bite. The design requires accurate calculation of the interference and elastic recovery force.
● Friction locking: Rely on the close fit between the inside of the lid and the outside of the bottle mouth to generate friction to keep it closed. The locking feeling is not as clear as the snap type, but the dimensional accuracy requirements are relatively low.
● Sealing principle: When the lid is buckled, the sealing rib/seal ring (usually one or more raised annular ribs) on the inside of the lid will be tightly pressed against the sealing surface of the bottle mouth.
● Elastic deformation of the material: The sealing rib deforms slightly under pressure to fill the microscopic unevenness of the contact surface with the bottle mouth.
● Line seal/face seal: Form a continuous annular contact line or contact surface.
● Pressure: The closing force provided by the snap or friction lock is converted into positive pressure on the sealing surface.
● For flip caps with inner plugs: The inner plug (usually made of softer PE, TPE or silicone) is inserted into the inner diameter of the bottle mouth, and its elastic deformation is used to achieve radial sealing (plugging), sometimes supplemented by end face sealing. This is a more reliable sealing method.

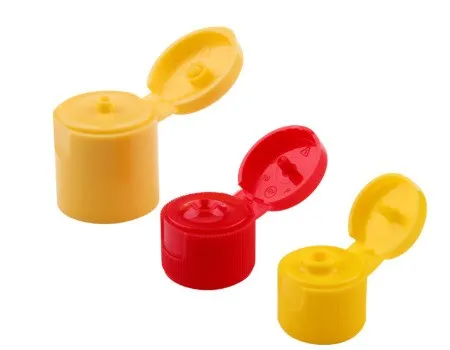

Ⅱ、Flip-top manufacturing process
Take the mainstream hinged PP flip-top as an example
1. Raw material preparation:
Select polypropylene (PP) pellets (main cap body) that meet the safety standards for cosmetic contact materials, and polyethylene (PE), thermoplastic elastomer (TPE) or silicone pellets for inner plugs. Masterbatch and additives (such as antioxidants and lubricants) are mixed according to the formula.

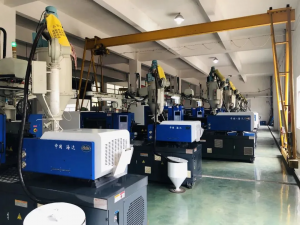

2. Injection molding:
● Core process: Plastic pellets are heated and melted into a viscous flow state in the barrel of the injection molding machine.
● Mold: Precision-machined multi-cavity molds are the key. Mold design needs to consider uniform cooling, smooth exhaust, and balanced ejection of the hinge.
● Injection molding process: Molten plastic is injected into the closed mold cavity at high speed under high pressure -> pressure holding (compensation for shrinkage) -> cooling and shaping -> mold opening.
● Key points: The hinge area requires very precise temperature control and injection speed control to ensure smooth material flow, reasonable molecular orientation, and no internal stress concentration, so as to obtain excellent fatigue resistance.
3. Secondary injection molding/two-color injection molding (optional):
Used to manufacture flip caps with soft rubber sealing inner plugs (such as the dropper cap of a dropper bottle). First, injection molding is performed on the hard PP substrate, and then the soft rubber material (TPE/TPR/silicone) is injected at a specific position (such as the contact point of the bottle mouth) in the same mold or in another mold cavity without demolding to form an integrated soft rubber seal or inner plug.
4. Ultrasonic welding/assembly (for non-integrated hinges or inner plugs that need to be assembled):
If the inner plug is an independent component (such as a PE inner plug), it needs to be assembled into the inside of the cover body by ultrasonic welding, hot melting or mechanical press fitting. For snap-on hinges, the cover body, hinge and base need to be assembled.
5. Printing/decoration (optional):
Screen printing: Print logos, texts, and patterns on the surface of the cover. Hot stamping/hot silver: Add metallic texture decoration. Spraying: Change color or add special effects (matte, glossy, pearlescent). Labeling: Paste paper or plastic labels.
6. Quality inspection and packaging:
Inspect the size, appearance, function (opening, closing, sealing), etc., and pack qualified products for storage.
Ⅲ、Application scenarios
Because of its convenience, flip-top lids are widely used in various cosmetics with moderate viscosity and need to be taken multiple times:
1. Facial care:
Facial cleansers, facial cleansers, scrubs, facial masks (tubes), some creams/lotions (especially tubes or hoses).
2. Body care:
Body wash (refill or small size), body lotion (tube), hand cream (classic tube).
3. Hair care:
Shampoo, conditioner (refill or small size), hair mask (tube), styling gel/wax (tube).
4. Special applications:
Flip-top lid with inner plug: The lid of a dropper bottle (essence, essential oil), the dropper tip is exposed after the lid is opened.
Flip-top lid with scraper: For canned products (such as facial masks and creams), a small scraper is attached to the inside of the flip-top lid for easy access and scraping.
Flip-top lid with air cushion/puff: For products such as BB cream, CC cream, air cushion foundation, etc., the puff is placed directly under the flip-top lid.
5. Advantageous scenarios:
Products that require one-handed operation (such as taking a shower), quick access, and low requirements for portion control.
Ⅳ、Quality Control Points
Quality control of flip-top lids is crucial and directly affects product safety, user experience and brand reputation:
1. Dimensional accuracy:
Outer diameter, height, inner diameter of lid opening, buckle/hook position dimensions, hinge dimensions, etc. must strictly comply with the tolerance requirements of the drawings. Ensure compatibility and interchangeability with the bottle body.
2. Appearance quality:
Defect inspection: No burrs, flashes, missing materials, shrinkage, bubbles, white tops, deformation, scratches, stains, impurities.
Color consistency: Uniform color, no color difference.
Printing quality: Clear, firm printing, accurate position, no ghosting, missing printing, and ink overflow.
3. Functional test:
Opening and closing smoothness and feel: The opening and closing actions should be smooth, with a clear "click" feeling (snap-on type), without jamming or abnormal noise. The hinge should be flexible and not brittle.
Locking reliability: After buckling, it needs to withstand certain vibration, extrusion or slight tension test without accidentally popping open.
Sealing test (top priority):
Negative pressure sealing test: simulate transportation or high altitude environment to detect whether there is leakage.
Positive pressure sealing test: simulate the pressure of the contents (such as squeezing the hose).
Torque test (for those with inner plugs and bottle mouths): test the torque required to unscrew or pull the flip cap (mainly the inner plug part) from the bottle mouth to ensure that it is sealed and easy to open.
Leakage test: After filling with liquid, tilt, invert, high temperature/low temperature cycle and other tests are carried out to observe whether there is leakage. Hinge life test (fatigue test): simulate the repeated opening and closing actions of consumers (usually thousands or even tens of thousands of times). After the test, the hinge is not broken, the function is normal, and the sealing still meets the requirements.
4. Material safety and compliance:
Chemical safety: Ensure that the materials comply with relevant regulatory requirements (such as China's "Technical Specifications for Safety of Cosmetics", EU EC No 1935/2004/EC No 10/2011, US FDA CFR 21, etc.), and conduct necessary migration tests (heavy metals, phthalates, primary aromatic amines, etc.).
Sensory requirements: No abnormal odor.
5. Physical and mechanical properties:
Strength test: Pressure resistance and impact resistance of the cover, buckle, and hinge.
Drop test: Simulate a drop during transportation or use, and the cover and bottle body will not break, and the seal will not fail.
6. Compatibility test:
Perform a real match test with the specified bottle body/hose shoulder to check the matching, sealing, and appearance coordination
Ⅵ、Purchasing points
When purchasing flip tops, you need to consider multiple factors to ensure quality, cost, delivery time and compliance:
1. Clear requirements:
Specifications: Clearly define size (matching bottle mouth size), material requirements (PP brand, whether soft glue is required and soft glue type), color (Pantone number), weight, structure (whether with inner plug, inner plug type, hinge type), printing requirements.
Functional requirements: Sealing level, opening and closing feel, hinge life times, special functions (such as scraper, air cushion bin).
Quality standards: Clear acceptance standards (refer to national standards, industry standards or formulate internal standards), especially key dimensional tolerances, appearance defect acceptance limits, sealing test methods and standards.
Regulatory requirements: Proof of compliance with target market regulations (such as RoHS, REACH, FDA, LFGB, etc.).
2. Supplier evaluation and selection:
Qualifications and experience: Investigate the supplier's industry experience (especially experience in cosmetic packaging materials), production scale, quality management system certification (ISO 9001, ISO 22715 GMPC for Cosmetics Packaging), and compliance certification.
Technical capabilities: mold design and manufacturing capabilities (leaf hinge molds are difficult), injection molding process control level (stability), and whether the testing equipment is complete (especially sealing and life test equipment).
R&D capabilities: Whether it is capable of participating in the development of new cap types or solving technical problems.
Production stability and capacity: Whether it can guarantee stable supply and meet order volume and delivery requirements.
Cost: Get a competitive quote, but avoid sacrificing quality by simply pursuing the lowest price. Consider mold cost sharing (NRE).
Sample evaluation: It is crucial! Prototype and strictly test (size, appearance, function, sealing, and matching with the bottle body). Qualified samples are the prerequisite for mass production.
Social responsibility and sustainability: Pay attention to the supplier's environmental protection policies (such as the use of recycled materials) and labor rights protection.
3. Mold management:
Clearly define the ownership of the mold (usually the purchaser).
Require suppliers to provide mold maintenance plans and records.
Confirm mold life (estimated production times).
4. Order and contract management:
Clear and clear contracts: Detailed specifications of product specifications, quality standards, acceptance methods, packaging and transportation requirements, delivery dates, prices, payment methods, liability for breach of contract, intellectual property rights, confidentiality clauses, etc.
Minimum order quantity (MOQ): Confirm whether it meets your needs.
Delivery time: Consider production cycle and logistics time to ensure that it matches the product launch plan.
5. Production process monitoring and incoming material inspection (IQC):
Key point monitoring (IPQC): For important or new products, suppliers may be required to provide key parameter records in the production process or conduct on-site audits.
Strict incoming material inspection: Inspections are carried out in accordance with the pre-agreed AQL sampling standards and inspection items, especially size, appearance, function (opening and closing, preliminary sealing tests) and material reports (COA).
6. Packaging and transportation:
Require suppliers to provide reasonable packaging methods (such as blister trays, cartons) to prevent the lid from being squeezed, deformed, or scratched during transportation.
Clarify labeling and batch management requirements.
7. Communication and collaboration:
Establish smooth and efficient communication channels with suppliers.
Provide timely feedback on issues and jointly seek solutions.
8. Focus on trends:
Sustainability: Prioritize the use of post-consumer recycled materials (PCR), recyclable single-material designs (such as all-PP lids), bio-based materials, and lightweight designs. User experience: More comfortable feel, clearer "click" feedback, easier to open (especially for the elderly) while ensuring sealing.
Anti-counterfeiting and traceability: For high-end products, consider integrating anti-counterfeiting technology or traceability codes on the lid.
Summary
Although the cosmetic flip-top lid is small, it integrates material science, precision manufacturing, structural design, user experience and strict quality control. Understanding its technical principles, manufacturing processes, application scenarios, and firmly grasping the key points of quality control and procurement precautions are crucial for cosmetic brands to ensure product safety, improve consumer satisfaction, maintain brand image, and control costs and risks. In the procurement process, in-depth technical communication, rigorous sample testing, comprehensive assessment of supplier capabilities, and continuous quality monitoring are indispensable links. At the same time, in line with the development trend of sustainable packaging, it is becoming increasingly important to choose a more environmentally friendly flip-top solution.
